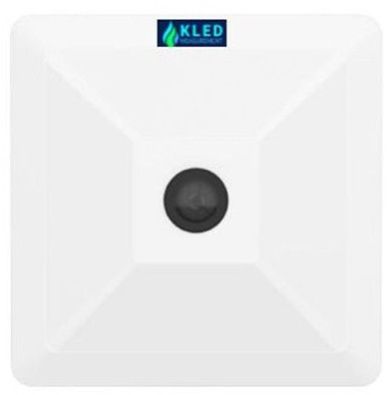

KVS121 Occupancy Sensor

Link Copied

10 piece (MOQ)

Edit

Business Type	Supplier, Trader
Power Supply	5V / 1.5A by Type-C Port
Operating Temperature	-5℃ ~ +55℃
Storage Temperature	-20℃ ~ +60℃
Click to view more

Product Details

Relative Humidity

0 ~ 95% (Non-condensing)

Color & Weight

Black/White (Optional), 126.9g

Dimension

85 × 85 × 20 mm (3.35 × 3.35 × 0.79 in)

Installation

Ceiling Mounting

Approvals

CE, FCC, RoHS

Regulatory

CE, FCC, RoHS

Power Input

1 × Type-C

LED Indicators

1 × Wi-Fi

Button

1 × Reset Button, 1 × Wi-Fi Button

Wi-Fi

IEEE 802.11 b/g/n, 2.4GHz, only support configuration

Protocol

LoRaWAN®

Frequency

CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923

TX Power

16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz)

Sensitivity

-137 dBm @300bps

Mode

OTAA/ABP Class C

Field of View

190° Horizontal, 112° Vertical

Kled KVS121, based on Artificial Intelligence (AI) technology, is an AI workplace sensor designed to monitor occupancy & utilization in modem workspace, which can reach up to 98% recognition rate. Only counter values are transmitted over LoRaWAN® network, which can prevent the privacy concerns. Based on standard LoRaWAN® protocol, KVS121 can work with Kled LoRaWAN gateway and mainstream LoRaWAN® network servers. With easy installation, KVS121 sensor has great use in shops, malls, offices, exhibitions, etc. Kled KVS121 sensors are equipped with Wi-Fi for easy configuration without any configuration tools.

◆ Features

Recognition rate is up to 98% based on advanced AI identification and analysis technology
Support up to 16 mapped regions for detection
No image data is collected, free from privacy concerns
Equipped with Wi-Fi for web GUI configuration
Support Kled D2D protocol to enable ultra-low latency and directly control without gateway
Function well with standard LoRaWAN® gateways and network servers
